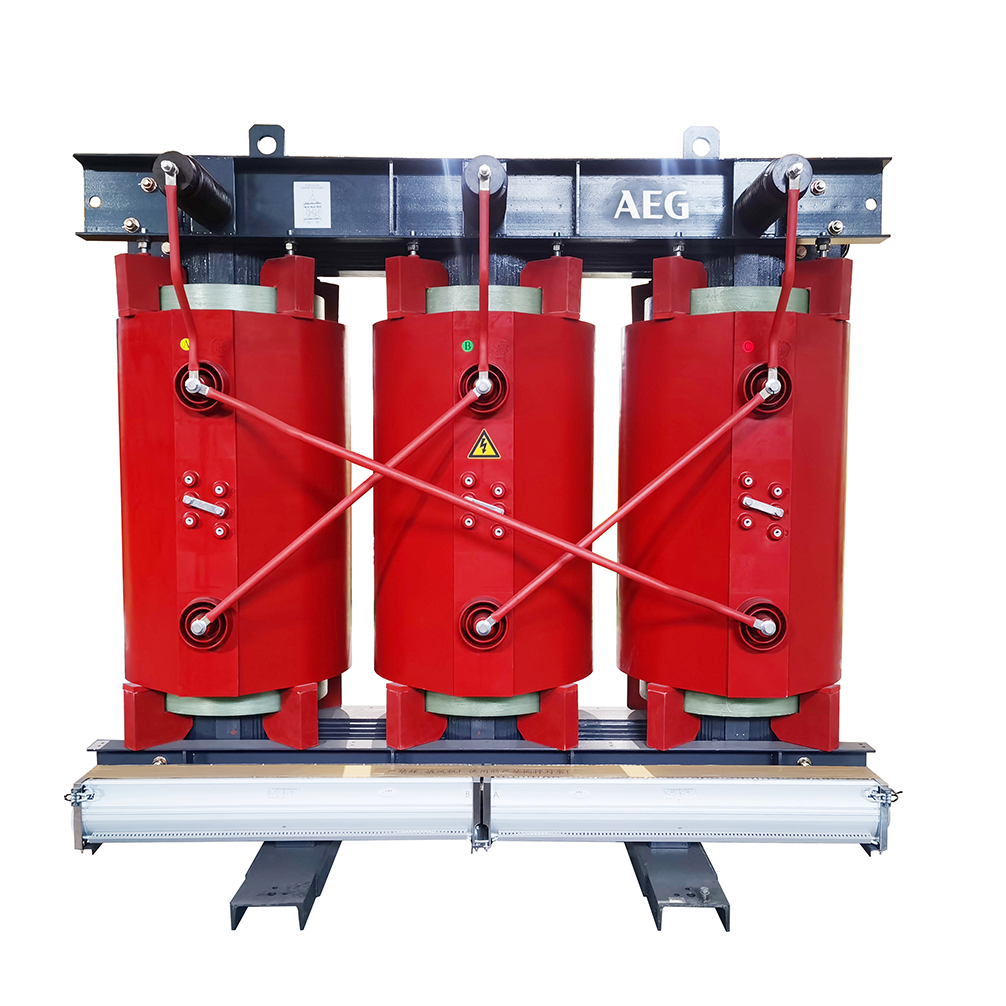

Wave Cast Dry Type Transformer
AEG's Wave Cast series transformers are safe, reliable, non-flammable, fireproof, low noise, pollution-free, energy saving and easy to maintain. High and low voltage all-foil structure coil, strong resistance to lightning shock and short circuit, high operation reliability. High and low voltage epoxy resin vacuum casting structure coil, local discharge capacity is small, both can be set air duct (patent technology), moistureproof and heat dissipation performance is good, easy installation and maintenance, low operating loss, low comprehensive operating cost. Equipped with anti-electric, magnetic field interference temperature display and control system, can be attached to the computer interface, remote control and monitoring, to provide protection for the safe operation of the transformer. It has passed the entire routine and type tests conducted by KEMA, CTQC (China) and other third party laboratories.
Strong environmental adaptability, can be equipped with protective shell and connecting bus, suitable for indoor or outdoor use, to meet the climate C2, environmental E2 and fire F1 grade.
• Safe, fire resistance, low noise, no pollution, can be installed in the load center of energy saving and environmental protection products. Climatological C2, environmental E2 and fire F1 rating reliability products
• High and low voltage all-foil structure coil, strong ability to resist lightning shock and short circuit, high operation reliability
• High and low voltage epoxy resin vacuum casting structure coil, local discharge capacity is small, can be set air duct (patent technology), moisture-proof and heat dissipation performance is good, can be put into normal operation at 100% relative humidity and -25℃, air cooling capacity increased by 25~40%
