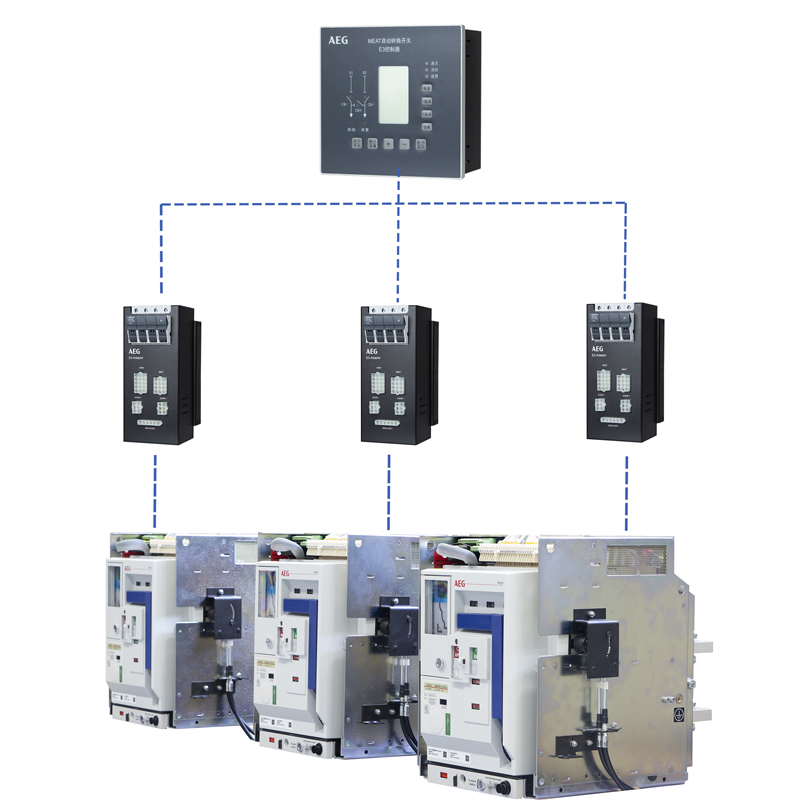

MEAT Automatic Transfer System
Meat automatic power switching system is a flexible combination of air circuit breakers and E2/E3 series controllers that enable reliable switching of multiple power supplies and the ability to achieve two lines and one bus.
Meat controller can monitor the undervoltage, overvoltage, and phase loss of two power supply channels. If any phase of the power supply loop is abnormal, the controller can automatically issue a switching command to the air circuit breaker according to a predetermined program.
• The controller of the automatic power transfer system and the air circuit breaker are all CCC certified
•Automatic power conversion system with automatic operation, remote operation, communication operation, manual operation mode, emergency can be through the fire linkage function priority to cut off all the power
• The switching delay time range of the automatic power conversion system is 0~480s. When the delay time is set to 0, the switching action time is less than 1s
• With self-casting and self-replying and self-casting and non-self-replying functions
• The conversion between two mains, the conversion between mains and generators, the conversion of two incoming lines with bus
