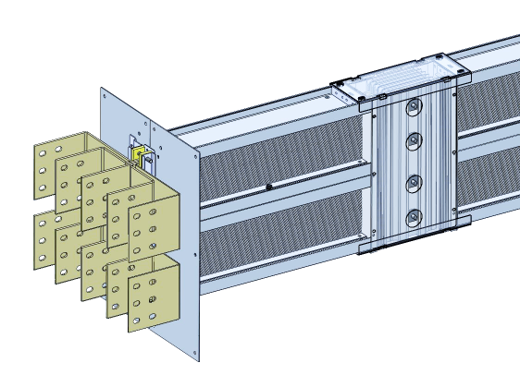

Busway System

GEIS-X Busway is a responsible product aimed at reducing energy consumption in power transmission and serving the future society. The entire series is fully equipped with standardized production, small volume, and large capacity. We have selected high-quality T2 pure copper and B-class 130 ℃ insulation film materials, fully considering the electrical performance parameters. GEIS-X Busway has a large current capacity and excellent electrical and mechanical performance. It uses high-strength alloy as the shell. Compared with traditional distribution methods, the equipment occupies less area, has strong short-circuit load capacity, longer service life, and can be easily added or changed in the distribution system. It has high reliability, small external dimensions, light weight, very simple connection, easy construction and inspection, and is the preferred power transmission solution for modern construction and distribution.

• Rated current: 400-6300A
• Rated voltage: 400/690/1000V
• Protection level: standard IP54, optional IP66
• Short time withstand current: up to 120kA
• Copper bar thickness in the entire series ≥ 5mm
• High quality aluminum alloy shell, formed by a dedicated mold in one process, with a thickness of ≥ 3mm, high strength, and light weight
• The copper bar is wrapped in B-grade insulation film material, which is heat-resistant to 130 ℃
• Copper bars with a total length of tin plated ≥ 4 μ m have excellent oxidation resistance and electrical performance
• Silver plated plug-in pins ≥ 5 μ m to improve connection reliability
